Ziroli PT-17 Stearman

Ziroli PT-17 Stearman 77” Wing

Reworked December 11, 2009

  •      This PT-17 was designed by Nick Ziroli, Smithtown, NY. I purchased the prints from Nick Ziroli Plans and the precut kit from The Airplane Works, Martinsville, NJ.

         The airplane was built during 2002 and finished in May of 2003. It was flown the first time on June 7, 2003. It has a total of 18 flights which averaged 15 minutes each.

         Two flights were made on April 14, 2005 to try out the new B & B Smoke system. The system worked flawlessly and made white billows of smoke. Pictures of the B&B installation were added to this section on April 26, 2005.

     Equipment:

    ·In April, 2005 I added the B&B Specialties Super Smoke Pumper with Control Valve, 16 oz. smoke oil tank & DuBro fill valve.
    ·JR XP8103S 8 channel Radio with 940S Receiver, Includes four Ultra Torque Servo’s # JRPS8411 on control surfaces and Servo #JRPS531 on Engine control. Includes a JR Transmitter Case.
    ·Qudra-Arrow Q-400 Gas Engine C& H Jump Start System.
    ·Mejzlik Carbon Fiber 18x10 Prop
    ·Du-Bro 24 oz. fuel tank and fuel fill valve.
    ·Robart PT17Z struts and # 13850A2 wheels.
    ·Fiberglass Specialties wheel pants and cowl.
    ·Covered with Koverall fabric.
    ·Painted 2003 VW Yellow and trimmed in VW Red.
    ·Goebel Instrument Panel.


Click on pictures to enlarge, click again for full screen
1 Ready to cover

Ready to cover
3 Fuslage Front with dummy radial engine.

 Fuselage with dummy radial engine
4a Ready to cover

Top Wing, ready to cover
6 Covered control surfaces

 Covered control surfaces
7 Pool Table PT-17

Steaman on pool table
9 Terry Holston Starting the Stearman

Terry Holston starting Stearman
11 Take-Off

Take off
13 Smoke-on

 Smoke on
15 Very Low Pass

Very low pass
17 Slow Roll

Slow roll
19 Touch & Go

Touch & go
21 Landing complete

Taxiing back
2 Side view

Side View
4 Bottom wing ready to cover

Bottom wing ready to covering
5 Wing half covered

Wing, half covered
7 Covered fuselage

Fuselage covered
8 Steerman ready for first flight

Stearman ready for first Flight
10 Ready For Take-off

Ready for takeoff
12 First Flight June 7, 2003.

First Flight June 3, 2003
14 Stearman with Smoke

Stearman with smoke

16 Doing a loop

Doing a loop
18 Knife Edge

Knife edge
20 Landing

Landing
22 Great filght complete

Great Flight

   In April, 2005 I added the B&B Specialities super smoke pumper with control valve, 16 oz. smoke oil tank & DuBro fill valve.
bullet02
#1 B & B Smoke System #2 Another view B & B Smoke System

     B & B smoke system

Another view of the smoke system

#3 Muffler Smoke Set-Up #4 Stearman Fuel Set-UP

Muffler smoke setup

Stearman fuel setup

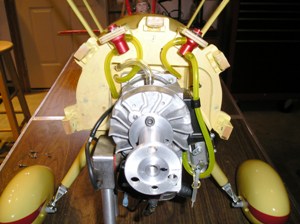

#5 Stearman Engine from Bottom #6 Stearman

Qudra-Arrow Q-400 gas engine

Stearman Q-400 engine
#7 Fuel & Oil Vents #8 Stearmann Pilot

Fuel & oil vents

Stearman Pilot

#9 New Carbon Fiber Prop

Mejzlik Carbon Fiber 18x10 prop

P-38 Lightning is next
