Elevator
November 5, 2011
Click picture to enlarge to full screen
Elevator under construction
Ready for Robart hinge points

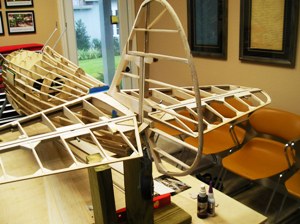

Checking out on Stearman fuselage
Right rear view
Added trim tabs to elevators
Added spacers & glued trim tabs to the elevators

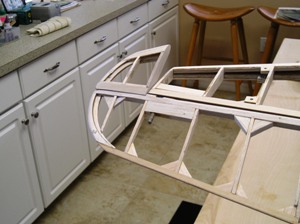

Modified elevator by adding Elephant Ears

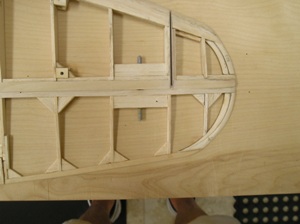

Elephant Ear elevator parting line

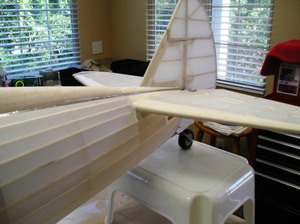

Rudder & elevator glued in place with epoxy
Elevator servo control rod & rudder & tail wheel servo control cable's all connected
Rudder is next

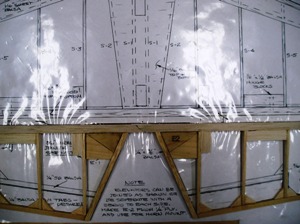

Elevator control
Robart hinge points installed

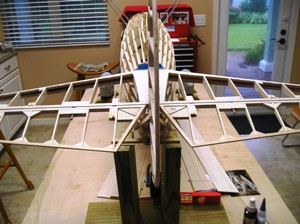

Rear view
Looks good for future installation
Will add spacers & glue in place

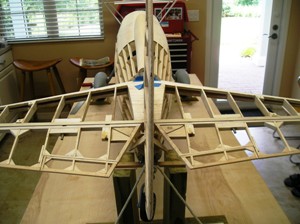

Checking elevator for alignment & fit

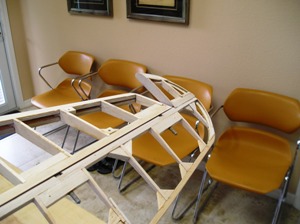

Another view of Elephant Ear elevator
Close up of Elephant Ear elevator
Another view of completed tail assembly
